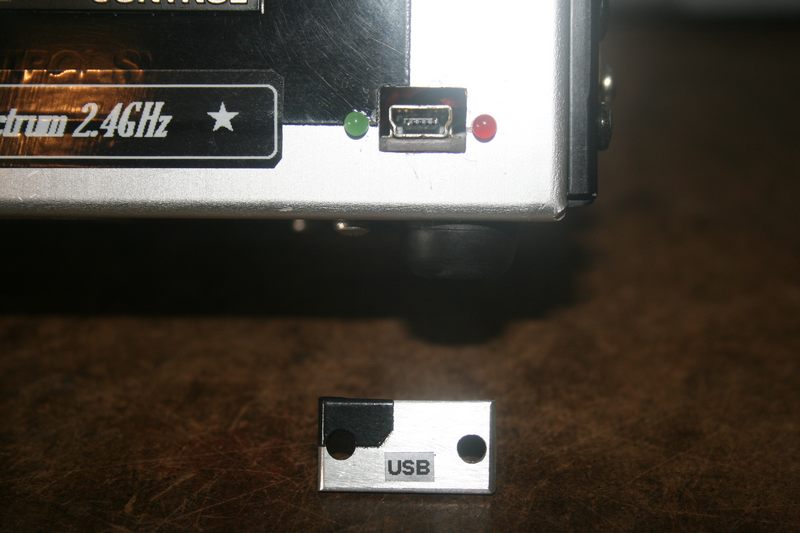

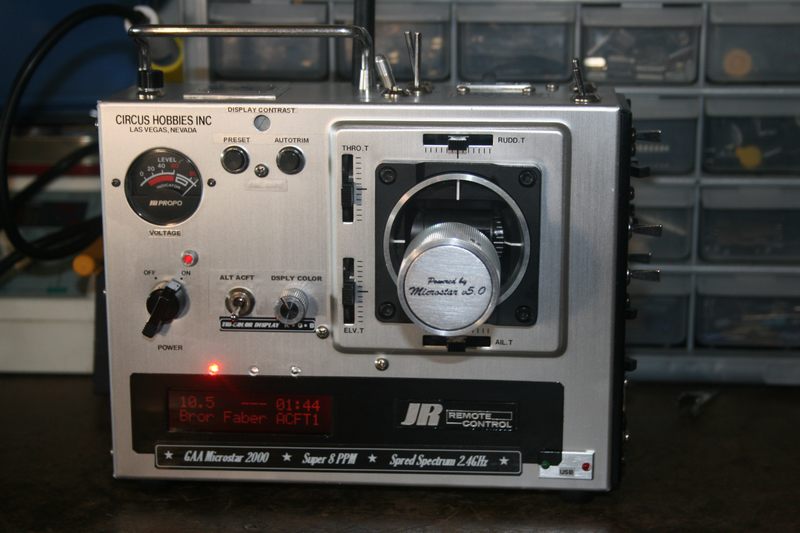

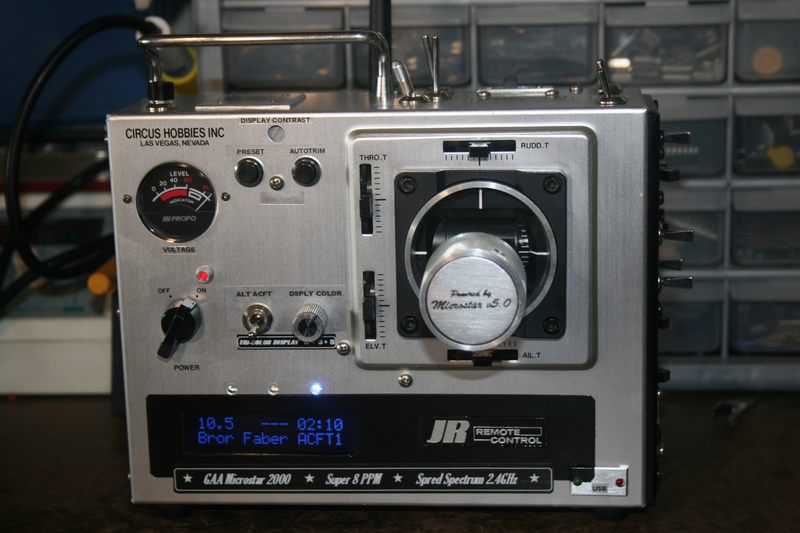

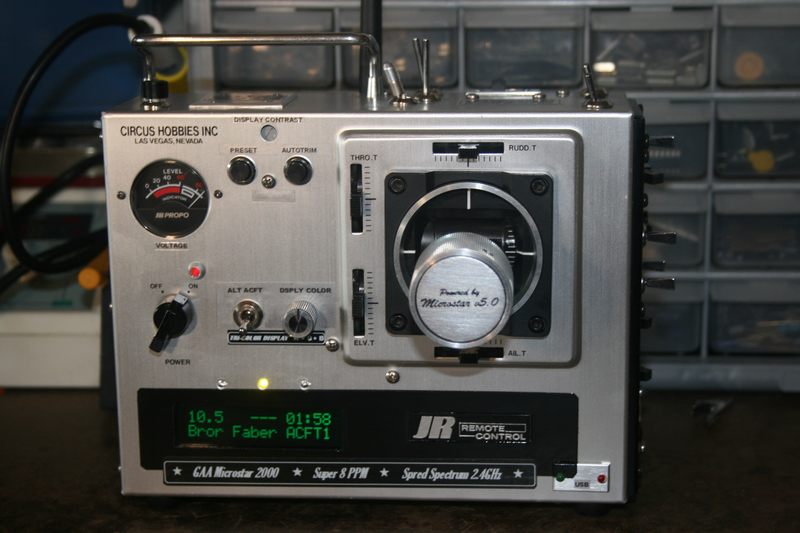

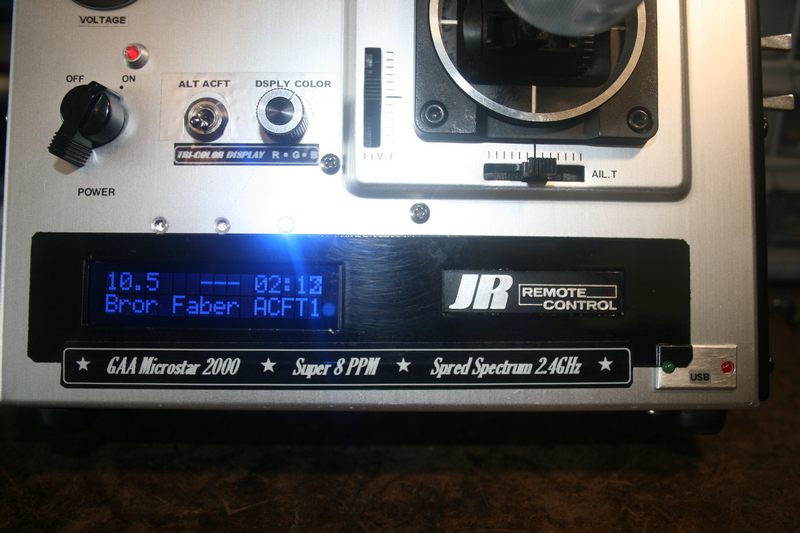

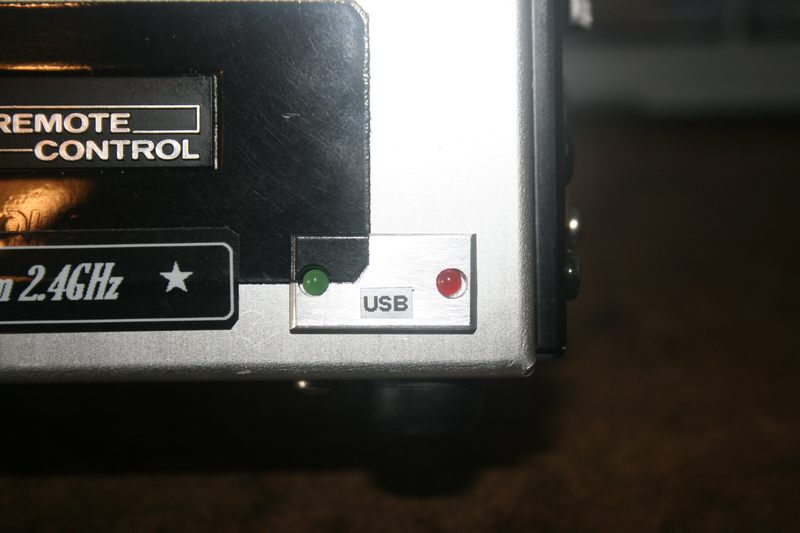

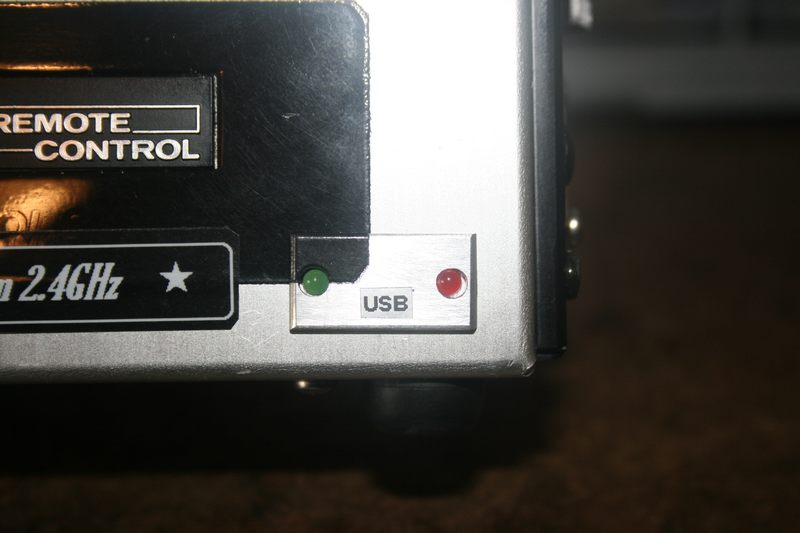

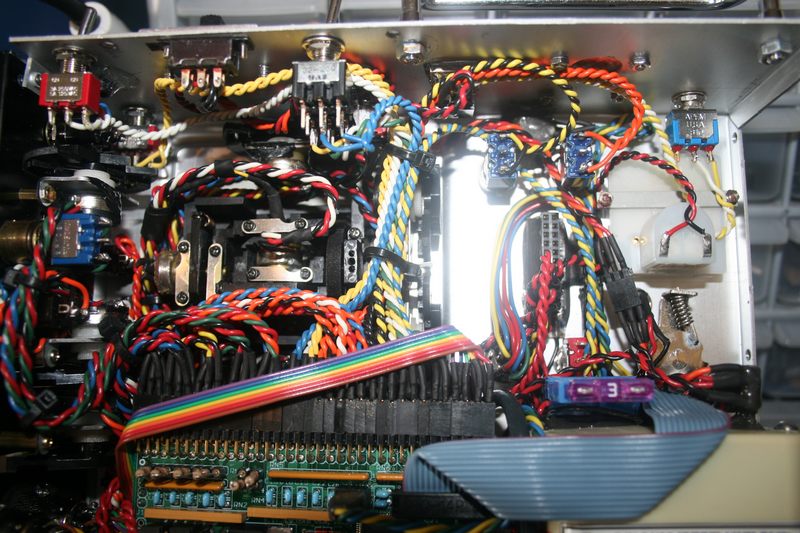

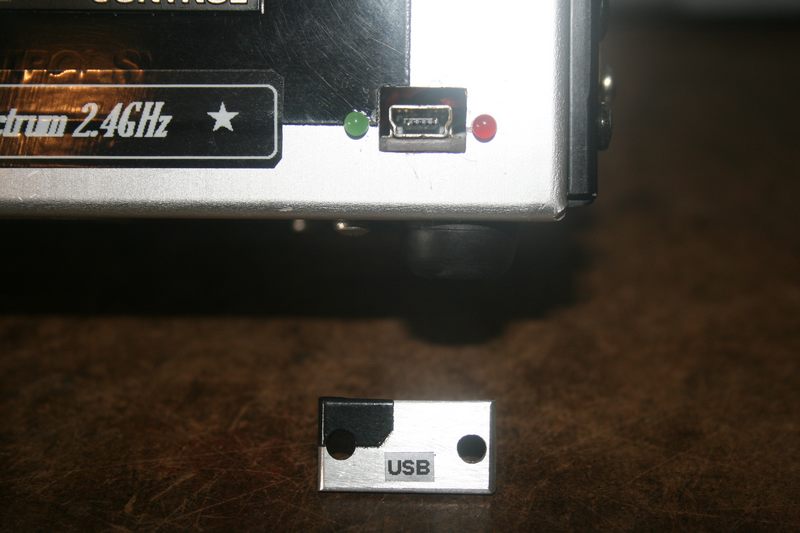

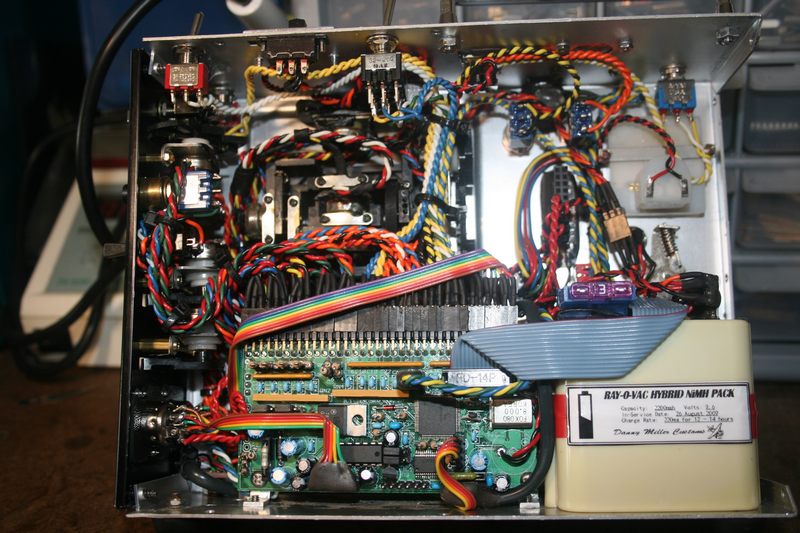

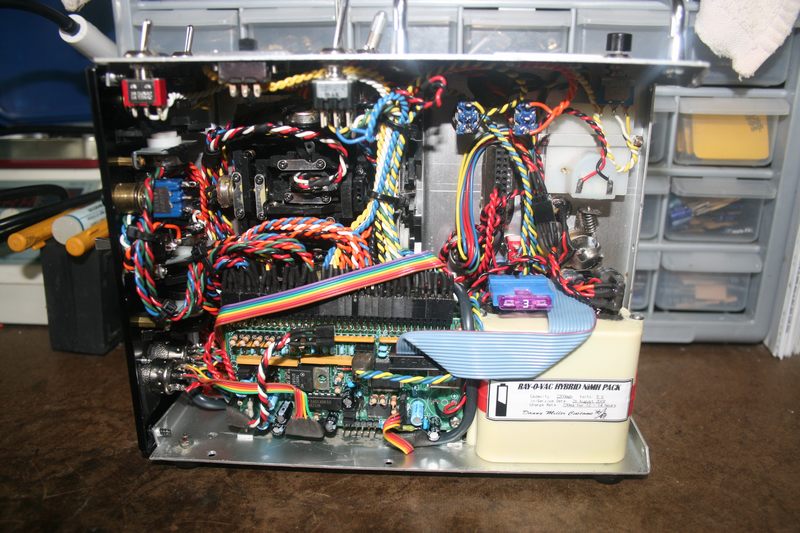

JR Single Stick conversion using a rev 5.0 encoder for a customer in Colorado. This is the first radio I've used the three color (RGB) negative bias display in. I used three display color indicator LEDs to fill two existing antenna mount holes in the case and drilled a third for the blue LED. In the future, I'll just use one RGB LED to save wiring. An Alcoswitch 3-3 mini rotary switch does the switching for both the LEDs and the display backlight. The USB cover and hole is located where an existing Ace charge connector was mounted by the owner. The holes were repurposed for the USB connection and send/receive LEDs The USB cover has fingernail slots on the top and bottom to allow easy removal. Counting the repair/rebuild of a badly damaged stick (thanks USPS), I've got somewhere around 200 hours in this radio. I hope you like it Bror!
