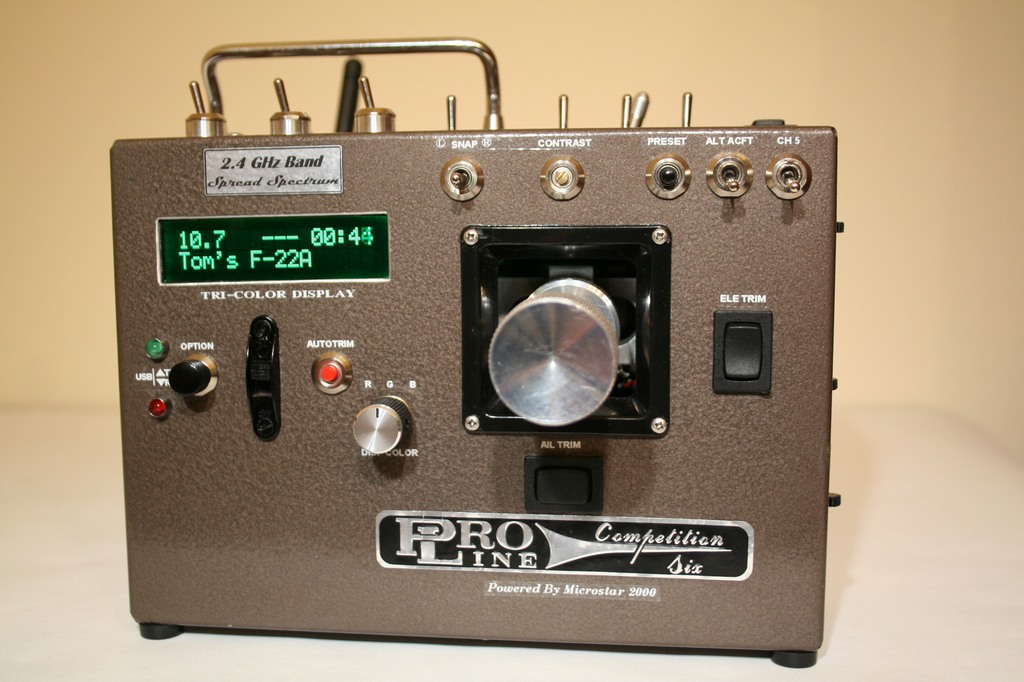

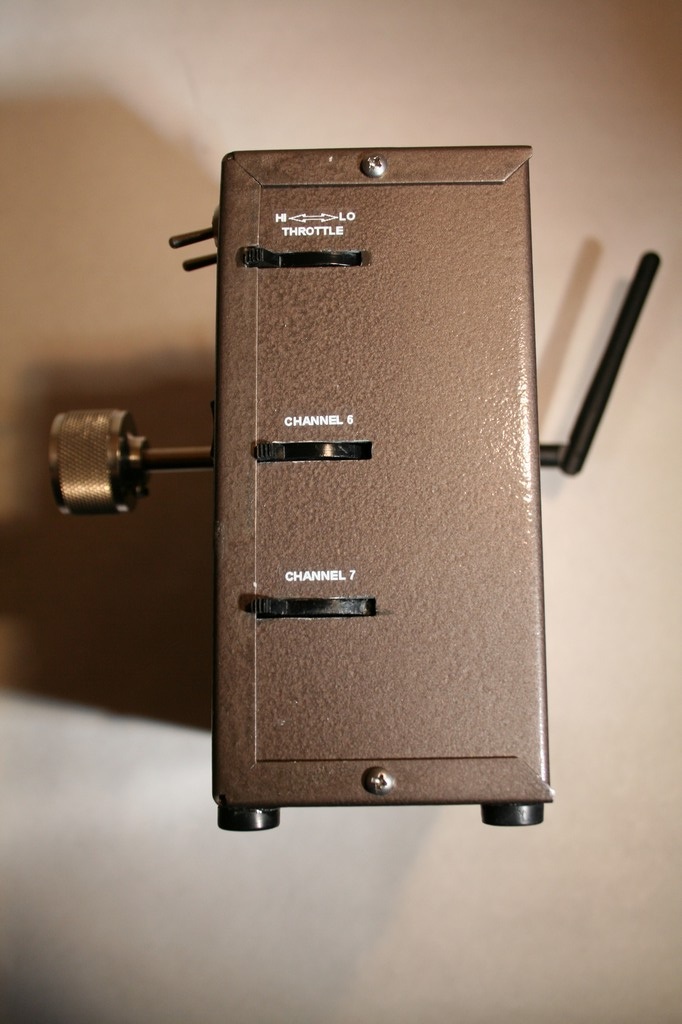

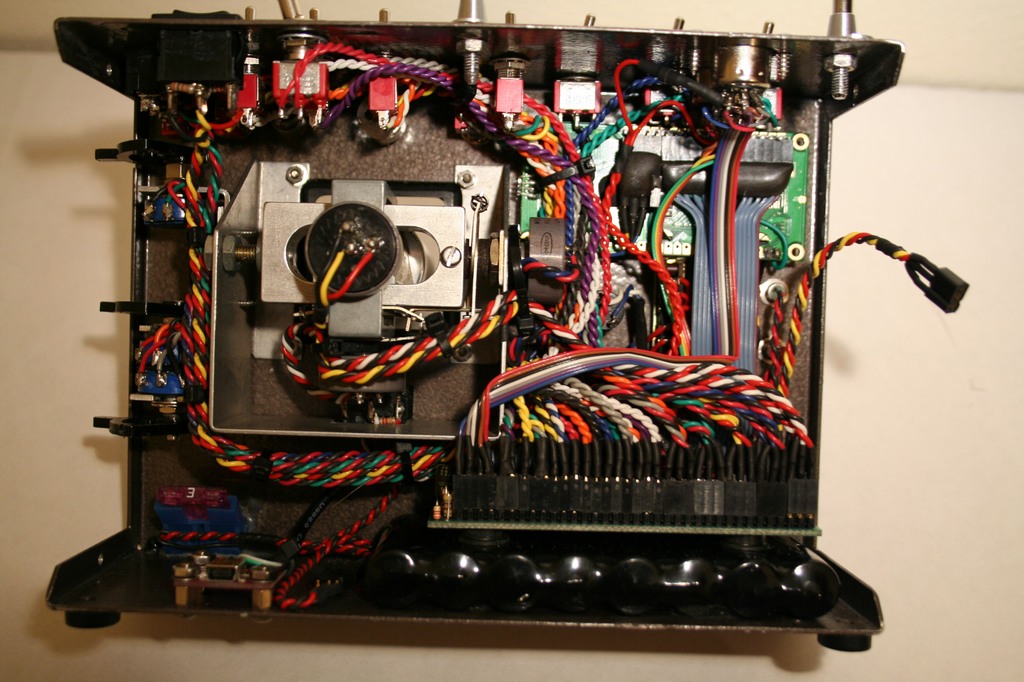

This is a Proline Competition 6 conversion for Tom Sirmon. Tom provided a stripped and painted box complete with filled holes for me to work with. He asked for just about every option available including a stick rebuild with Spectrol 157 pots (including the rudder), digital trims, remote USB LEDs and a tri-color display with contrast. Had to fabricate the CH6/7 pot mounts since the original 6 channel case didn't come with provisions for those aux channels. Due to all the options requested, space in the case was limited and mechanical clearances were tight. Dan Thompson's adapter was used to integrate the Spektrum 2.4GHz module to the encoder. Tom said he liked the way it turned out and since he lives very close to Ron Chidgey, he was planning to let him take a good look at it. Hope Ron likes it as much as Tom!
